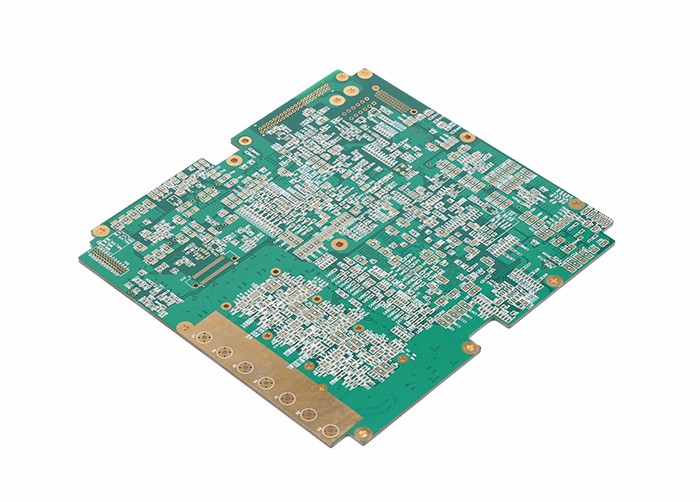

Layer：
16L
Material：
FR4
Finished thickness:
2.3MM
Finished copper thickness:
1/1OZ
Min hole:
0.225mm
Min trace width/space:
3.5/3.5mil
Aspect Ratio：//Special technology
10.2:1
Outline
149mm*139mm

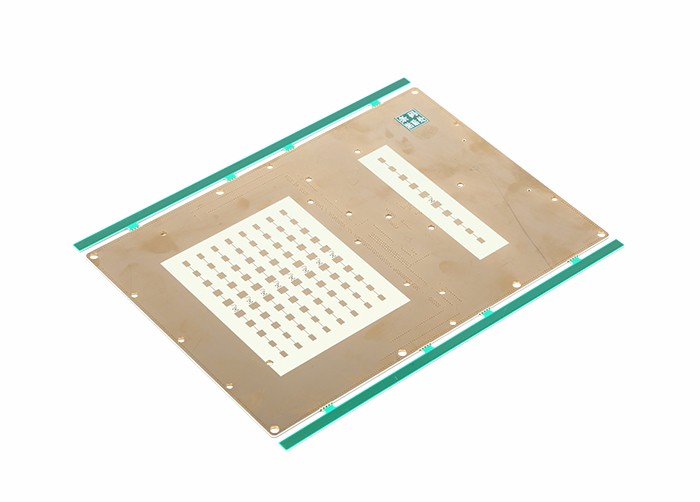

Layer：
2L
Material：
High frequency material
Finished thickness:
0.9mm
Finished copper thickness:
1/1OZ
Min hole:
0.45mm
Min trace width/space:
8/8mil
Aspect Ratio：//Special technology
2:1
Outline
135mm*175mm

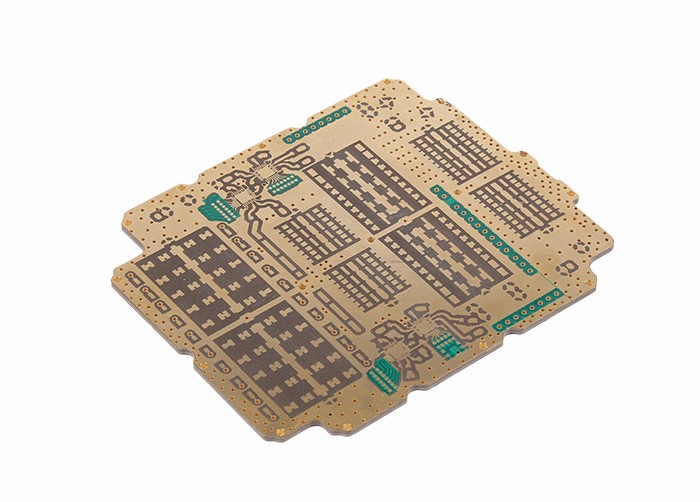

Layer：
4L
Material：
FR-4
Finished thickness:
1.8mm
Finished copper thickness:
1/1OZ
Min hole:
0.4mm
Min trace width/space:
3/3mil
Aspect Ratio：//Special technology
4.5:1
Outline
88.4mm*107.2mm

  • The products are widely used in communications,power,industrial control,automobile,medical equipments and aerospace field etc..
