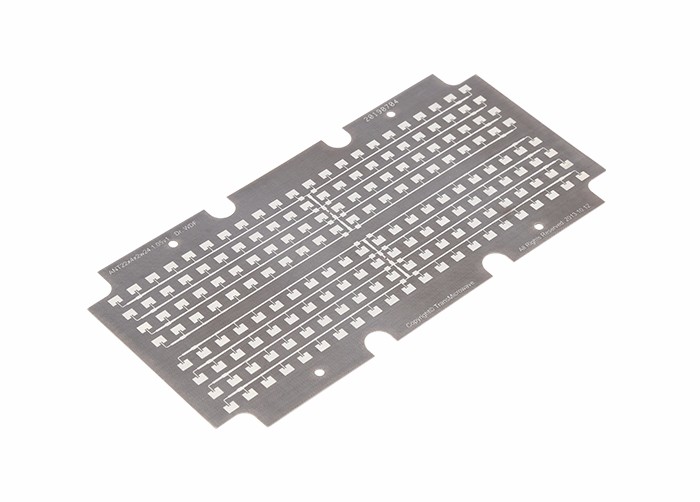

Layer：
2L
Material：
High frequency PTFE material
Finished thickness:
0.6mm
Finished copper thickness:
1/1OZ
Min hole:
0.3mm
Min trace width/space:
6/6mil
Aspect Ratio：//Special technology
2:1
Outline
199.15mm*97.2mm

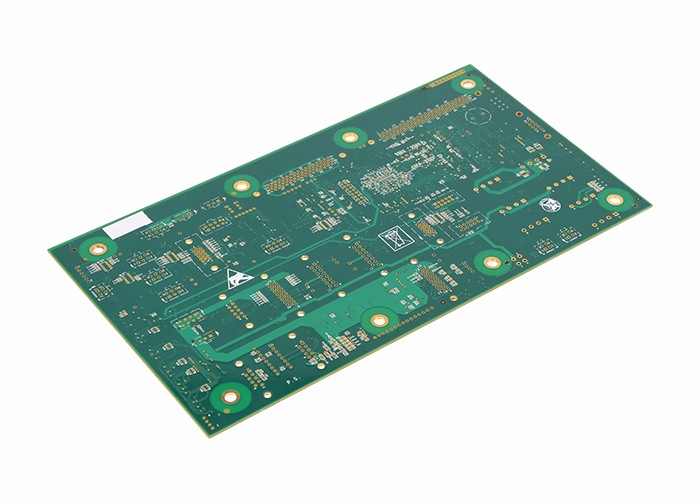

Layer：
4L
Material：
FR-4
Finished thickness:
1.60mm
Finished copper thickness:
1/1OZ
Min hole:
0.25mm
Min trace width/space:
3/4mil
Aspect Ratio：//Special technology
6.4:1
Outline
286mm*159mm

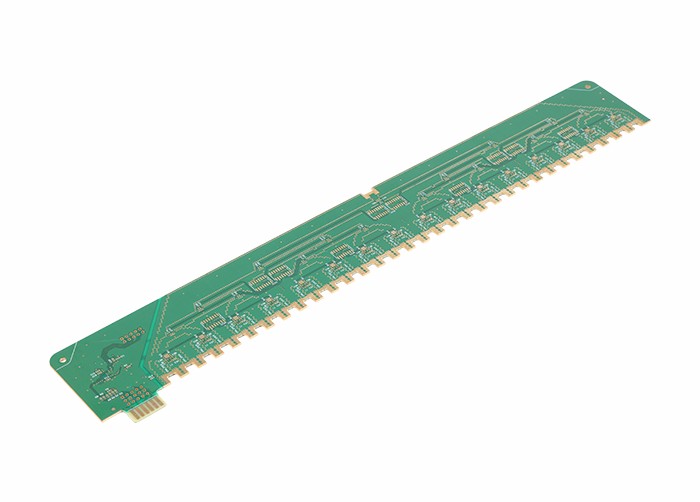

Layer：
6L
Material：
FR-4
Finished thickness:
1.60mm
Finished copper thickness:
1/1OZ
Min hole:
0.25mm
Min trace width/space:
4/4mil
Aspect Ratio：//Special technology
6.4:1
Outline
350mm*60mm

  • The products are widely used in communications,power,industrial control,automobile,medical equipments and aerospace field etc..
