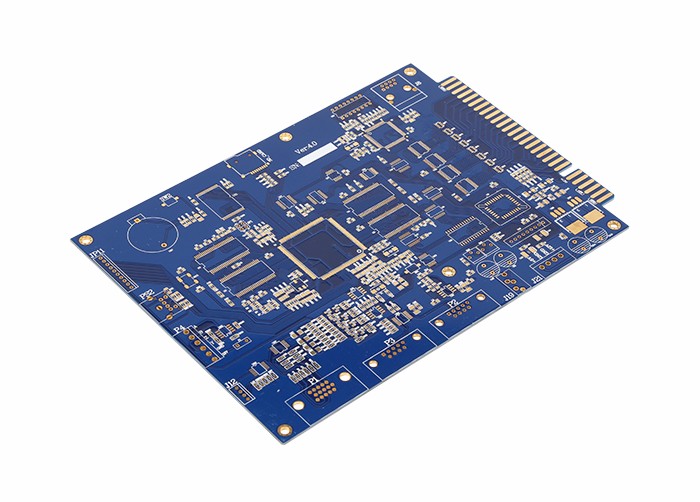

Layer：
4L
Material：
FR-4
Finished thickness:
1.60mm
Finished copper thickness:
1/1OZ
Min hole:
0.35mm
Min trace width/space:
5/6mil
Aspect Ratio：//Special technology
4.57:1
Outline
150mm*217mm

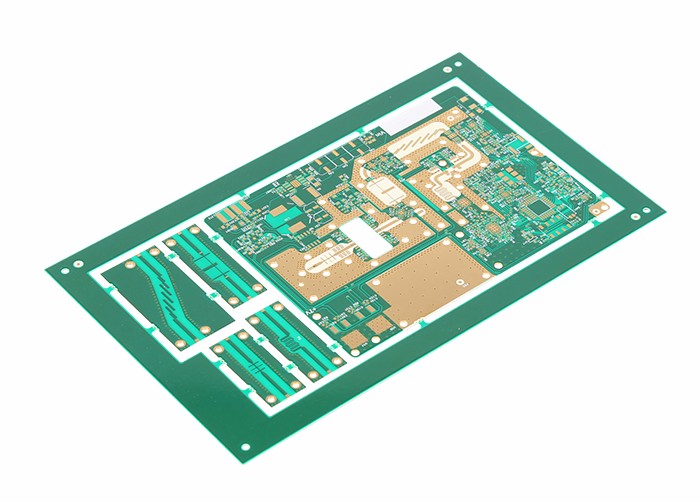

Layer：
2L
Material：
High frequency material
Finished thickness:
0.6MM
Finished copper thickness:
1/1OZ
Min hole:
0.35mm
Min trace width/space:
6/6mil
Aspect Ratio：//Special technology
1.71:1
Outline
176mm*105mm

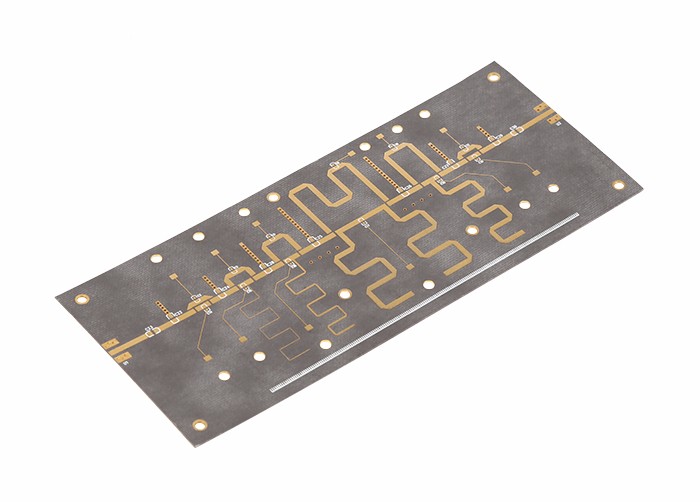

Layer：
1L
Material：
High frequency PTFE material
Finished thickness:
0.6MM
Finished copper thickness:
1/1OZ
Min hole:
0.45mm
Min trace width/space:
5/6mil
Aspect Ratio：//Special technology
1.33:1
Outline
141mm*60mm

  • The products are widely used in communications,power,industrial control,automobile,medical equipments and aerospace field etc..
